Position
sensor for hydraulic cylinders with measuring lengths up to 2500 mm
Absolute wire-actuated sensor for
position measurement and speed measurement in hydraulic cylinders, telescopic
cylinders, and piston accumulators. Durable, reliable, and easy to integrate,
based on over 30 years of experience in wire-actuated sensor technology.
- Measuring range 0 … 2500 mm (98.42
inches)

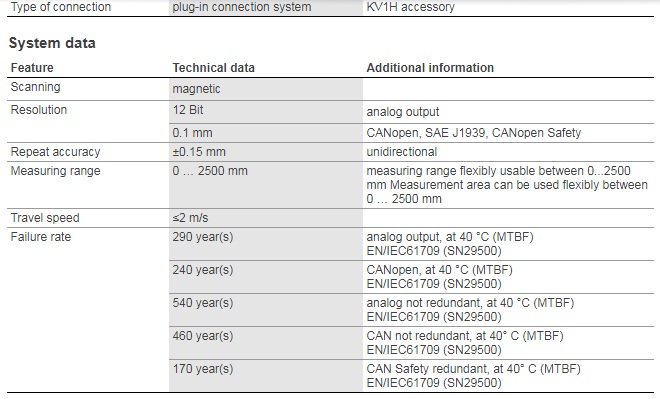

- Absolute measuring system

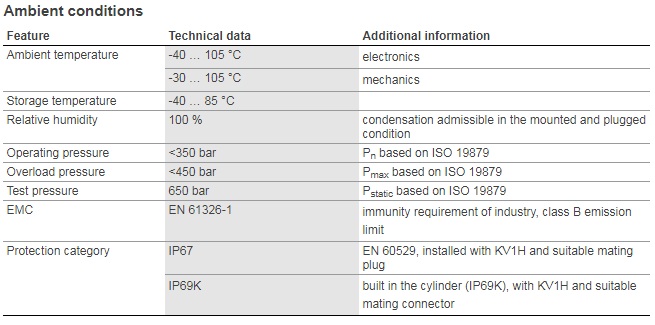

- Pressure-resistant up to 350 bar, pressure
peaks up to 450 bar
- High degree of flexibility, adjustable
to all measuring lengths thanks to teach-in
- Redundant interfaces available

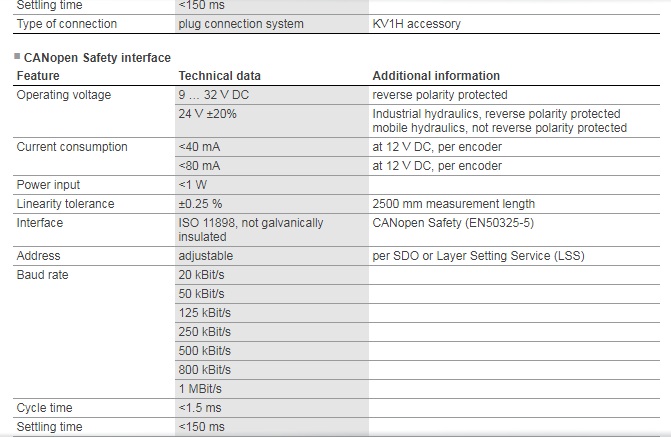

- Safety version usable up to Perfomace Level d

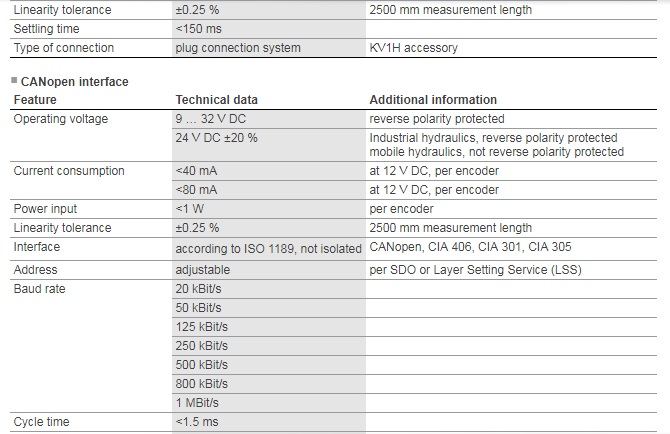

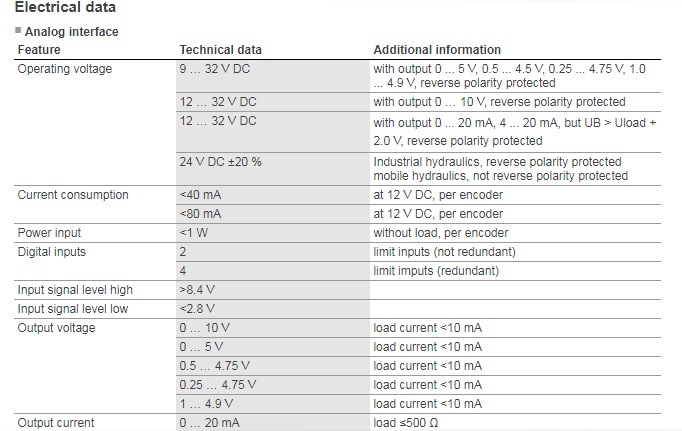

- Analog, CANopen, SAE J1939, CANopen Safety
interfaces
