Working Principle |
Diffuse reflective sensor |

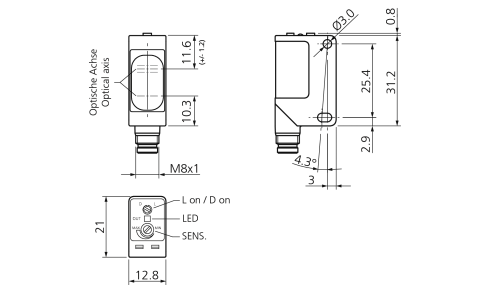

Size |
31.2 x 21 x 12.8 |
Design |
Cuboid |
Emitted Light |
Infrared, 850 nm, clocked |
Standardized Measuring Plate |
200 x 200 mm, white |
Service Voltage |
10 ... 30 V DC |
No-load Current |
< 45 mA |
Background Suppression |
Var |
Operating Distance |
30 ... 400 mm adjustable |
Sensitivity Adjustment |
Potantiometer |
Switching Output |
pnp, 100 mA, NO/NC |
Switching Frequency |
1000 Hz |
Response/Release Time |
0,50 ms / 0,50 ms |
Ambient Temperature |
-25 … +70 °C |
Ambient Light Immunity |
3 kLx, Halogen light, 10 kLx, sun light |
Protection Category |
IP 67 |
Protection Degree |
III, protective low voltage operation |
Housing |
Plastic |
Material |
polymethyl methacrylate (window) |

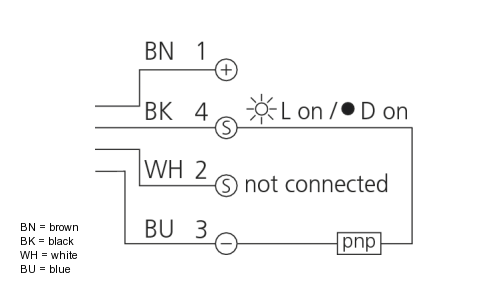

Type of Connection |
Connector, M8, 4-pole |
Evaluation |
Digital |
Voltage Drop |
< 2,0 V |
