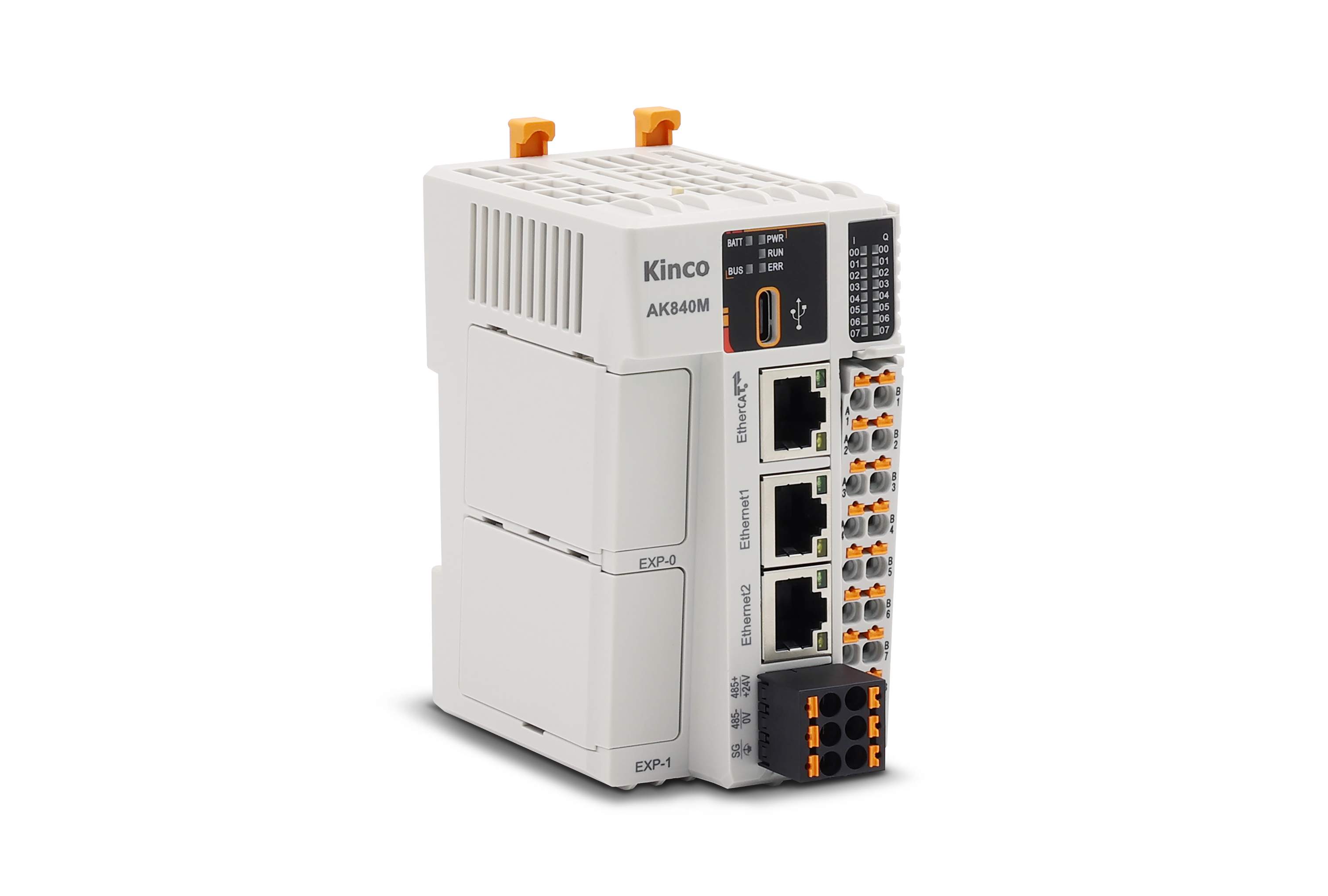

Kinco AK840M-0808DTP | İLX
| Product Series | AK840M |
| Product Type | Motion Control |
| Power Supply | 24VDC |
| Bus Protocol | 1× EtherCAT, Minimum synchronization cycle: ms, maximum number of synchronized axes: axes. Axis-control performance: ms, axes synchronized motion control (typical MC: electronic cam). 2× Ethernet, Both support Modbus TCP master/slave, with a maximum of TCP slaves per channel. Both support program upload and download. 1× RS , Supporting Modbus RTU master/slave protocol, supporting up to Modbus RTU slaves 1× USB OTG, Supports firmware updates via USB drive (FAT format) |
| Bus Interfaces | 1XEthercat, 2xEThernet, 1x RS485, 1xUSB OTG |
| Indicators | PWR: Power status RUN: Device operation status ERR: Device error BUS: Expansion bus error BATT: Low voltage of backup battery |

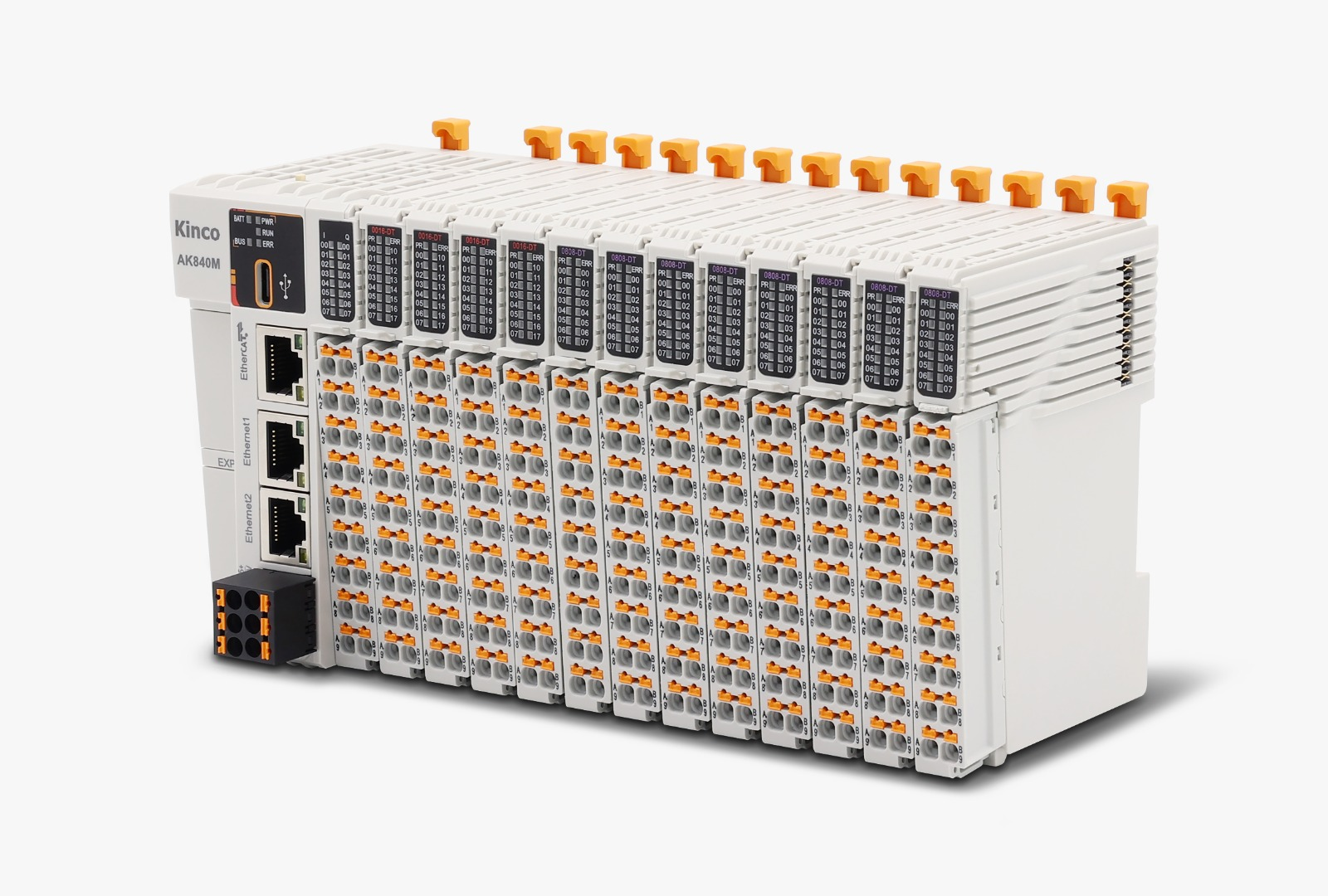

| Expansion Capacity | 16 Expansion Modules Can Be Added |
| Digital Input channels | 8 Transistor |
| Digital Output Channels | 8 Transistor |
| Rated Power | 6W(CPU unit only)/20 W(Full-load) |
| Local I/O | 8× Digital inputs, supports PNP/NPN, supports 2-channel high-speed inputs, A/B phase and pulse/direction signals, with a maximum of 200KHz. 8× Digital outputs, supports PNP |
| Motion Control | Supports 8 to 32 axes, 1ms to 4ms, electronic gear, electronic cam, Interpolation and other motion control functions. |
| Processor | Quad-Core 64-Bit Arm Cortex-A53,1.4GHz Processor |
| Program Memory | 32MB |
| Data Memory | 32MB |
| Non-volatile Storage | 1MB |
| Protection Level | IP20 |
| Software | IEC31131-3 Codesys |
| Dimensions (W × H × D) | 57x80x108 |
